Details
Model: 49-0005
Manufacturer: Zoeller Pump Company
Series: Water Ridd’r III 49
Part Number: 1862983
Description: Submersible sump pump, 1/4 HP, 115V, single phase, with factory-set float switch and non-clogging vortex impeller.
Product Overview

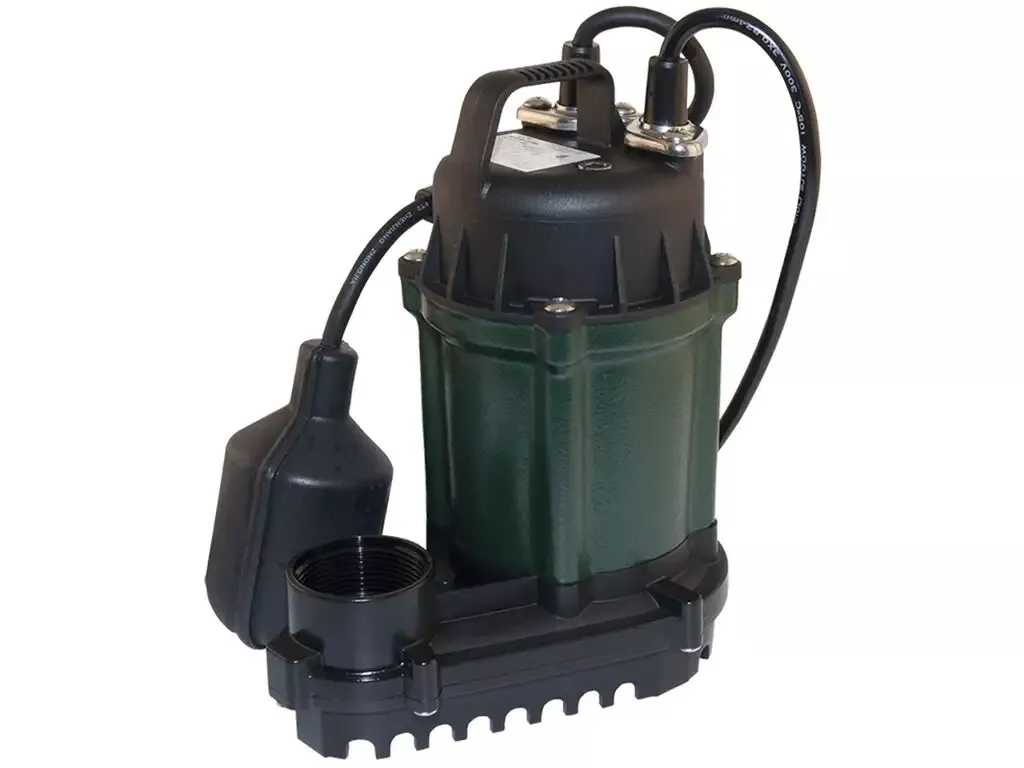

The Zoeller 49-0005 Water Ridd’r III Submersible Sump Pump is designed for efficient groundwater and sump drainage applications where reliable operation and compact dimensions are required. Engineered with a corrosion-resistant cast iron housing and a thermally protected 1/4 HP motor, this pump delivers 32 GPM at standard head conditions and supports a maximum head of 18 feet. The factory-set vertical float switch ensures consistent pump activation range without hang-up risk, while the non-clogging vortex impeller design allows free passage of debris, reducing maintenance intervals. The sealed ball bearing construction ensures long operational life under continuous or intermittent service conditions.
Technical Specifications
- Manufacturer Part Number: 49-0005
- Alternate Part Number: 1862983
- Pump Type: Submersible Sump Pump
- Series: Water Ridd’r III 49
- Horsepower: 1/4 HP
- Motor Type: Single-phase, single-seal motor
- Electrical Rating: 115V, 60 Hz, 4 A
- Speed: 3450 RPM
- Power Cord: 3-wire configuration
- Discharge Size: 1-1/2 inch NPT outlet
- Flow Rate: 32 GPM at standard operating head
- Maximum Head: 18 feet
- Impeller Type: Non-clogging vortex impeller
- Seals and Bearings: Single mechanical seal; oil-lubricated ball bearings
- Thermal Protection: Built-in motor overload protection
- Operating Temperature: Rated for continuous operation up to 104°F (40°C)
- Construction Material: Cast iron housing and base
- Pump Height: 10-1/2 inches
- Pump Width: 8-3/32 inches
- Switch Type: Factory-set float switch with fixed range
- Mounting Configuration: Freestanding base designed for sump basin installation
- Corrosion Resistance: Powder-coated finish with non-corrosive components
- Application: Sump drainage, groundwater removal, and light-duty dewatering
- Compliance: UL Listed and CSA Certified
Installation Notes
- Install pump on a solid, level surface within sump basin; ensure clearance for float switch operation.
- Connect discharge piping with 1-1/2 inch NPT threaded coupling or flexible adapter.
- Provide check valve on discharge line to prevent backflow.
- Verify electrical circuit rating matches pump voltage and amperage requirements.
- Do not operate the pump dry; ensure water level covers pump housing before energizing.
- Inspect float mechanism for unobstructed travel after installation.
Summary
The Zoeller 49-0005 Water Ridd’r III Series Submersible Sump Pump is a compact, cast iron pump assembly designed for residential and light commercial sump applications. Featuring a 1/4 HP motor, vortex impeller, and integrated float switch, it delivers 32 GPM performance with dependable automatic operation and minimal maintenance in confined sump basins.
