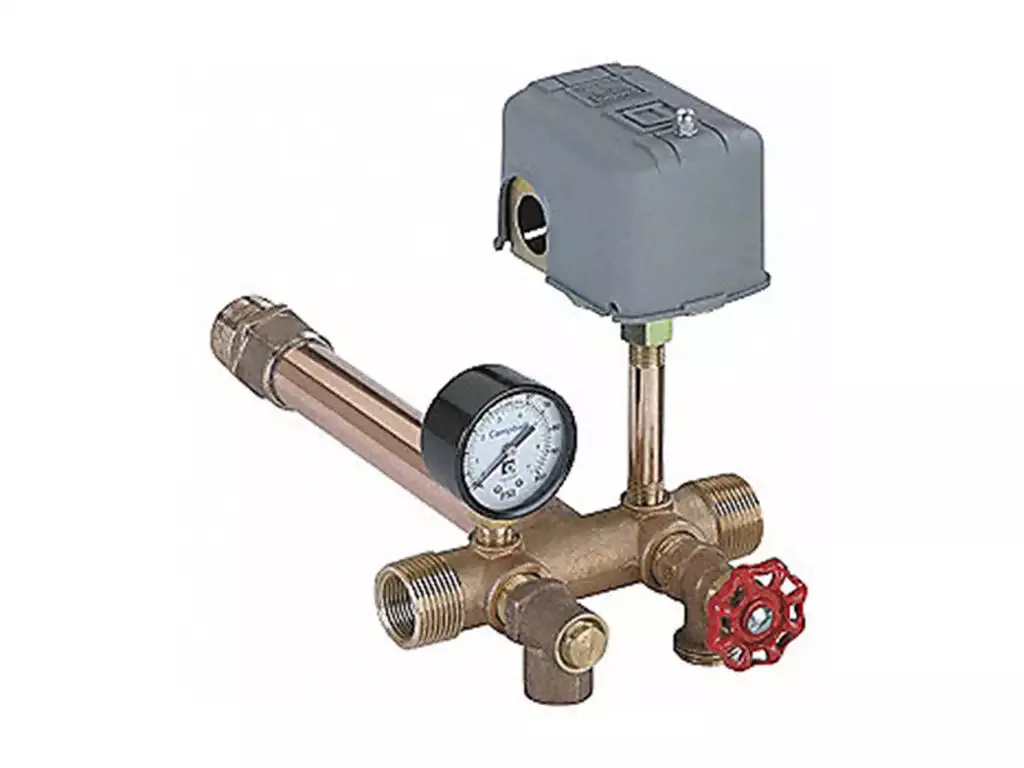

Campbell Lead-Free Tank Tee Assembly – Complete Kit for Residential Pressure Tank Installations
The Campbell Lead-Free Tank Fitting Kit is a pre-assembled package designed for use in residential well water pressure tank systems. This assembly includes a lead-free brass tank tee and all essential components required for standard installations, reducing field assembly time and ensuring code-compliant configuration.
Constructed from certified lead-free materials, this kit is suitable for potable water applications and meets low-lead compliance requirements. It provides connection points for pressure switches, gauges, relief valves, and drain valves—supporting both new system installations and replacements.
Included Components
- STC4-3TLF: 1″ x 3/4″ x 1″ Lead-Free Brass Tank Tee
- FSG2-A: Square D Pressure Switch (20/40 or 30/50 range, depending on model)
- BN1/4 x 3: 1/4″ x 3″ Brass Nipple
- PG1T-NL: 0–100 PSI Pressure Gauge (Lead-Free, with 1/4″ NPT back mount)
- BD2-LF: Lead-Free Boiler Drain Valve
- RV2NLF: Lead-Free Pressure Relief Valve (125 PSI, 1/2″ MPT)
Material and Compliance
- Material: Lead-free brass (compliant with NSF/ANSI 372)
- Application: Potable water systems, well pressure tank installations
- Configuration: Horizontal tank tee with vertical outlets for accessories
- Connection Size: 1″ MNPT inlet x 3/4″ FNPT outlet
Installation Considerations
This tank tee assembly is engineered for direct mounting to the bottom port of vertical pressure tanks. Ensure the use of NSF-approved thread sealant on all connections. Proper alignment and support are critical to avoid stress on threads and fittings. Electrical connections to the pressure switch must comply with local electrical code.
Contractor Notes
- Pre-packaged configuration saves assembly time on jobsite
- Compatible with most standard residential pressure tanks
- Lead-free components meet current plumbing code requirements
- Compact layout optimizes space in tight mechanical rooms
Warranty
- Manufacturer Warranty: Limited coverage per component (see individual product documentation for details)
