- Diameter: 5-1/4″
- Depth: 2-5/8″
- Polycarbonate Body with Brass Terminals
- Ignition Protected
- For use with 6 to 32 Volt Marine Electrical Systems
- Capacity – 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
- Terminal Stud Size: 5/16″
- When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned “OFF” with the engine running.
Features & Specifications

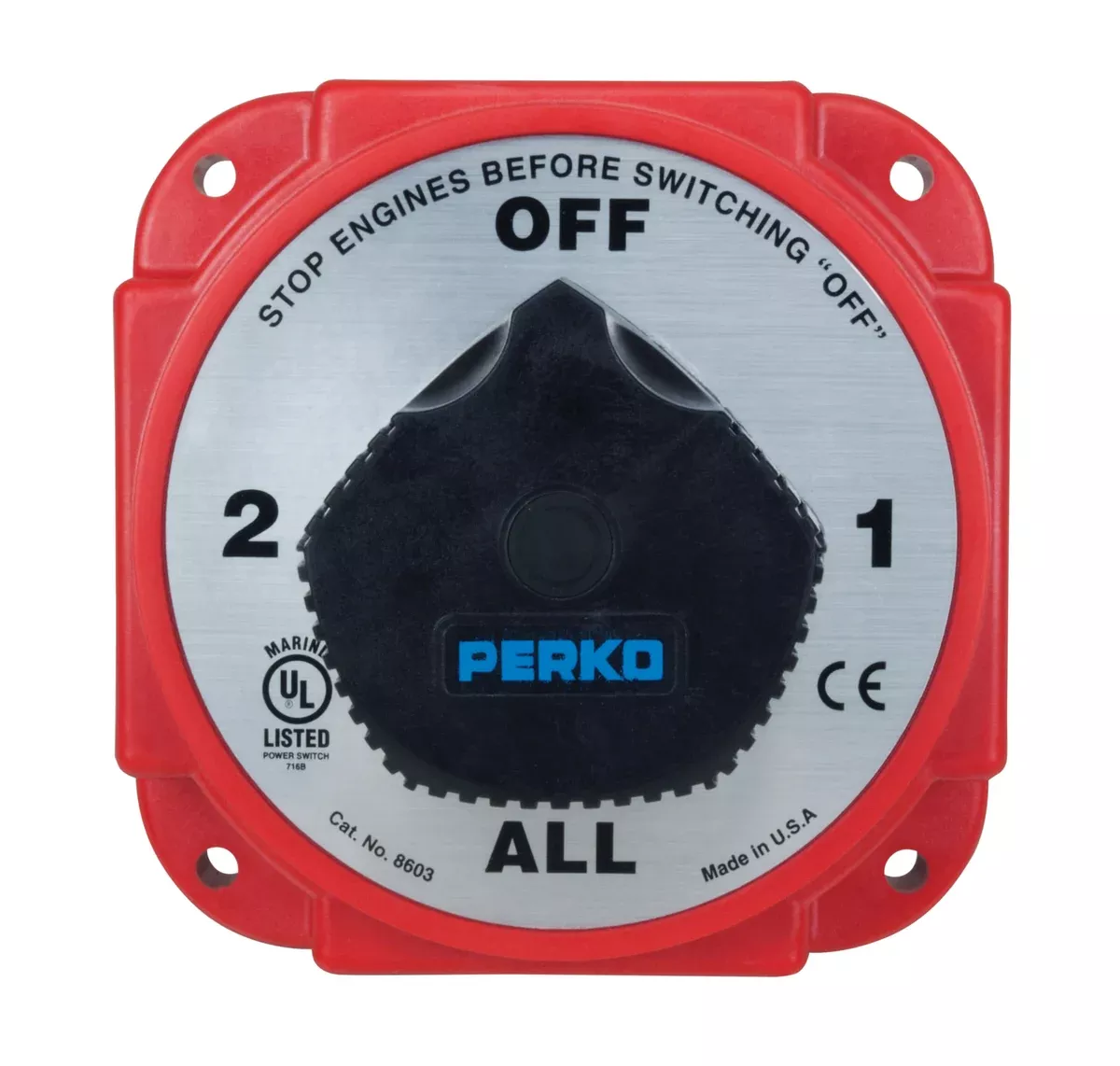

- Manufacturer Part Number: 8603DP
- UPC: 0085226021558
- Dimensions: 8 × 4 × 4
- Category: Electrical | Battery Management / Electrical | Switches
- AFD = Yes | Lockable = No | Positions = 2 | Continuous Amperage = 380a
- Locking: No
- Size: 5-1/4″ x 5-1/4″ x 3-3/8″
- Type: 1, 2, Both, Off
