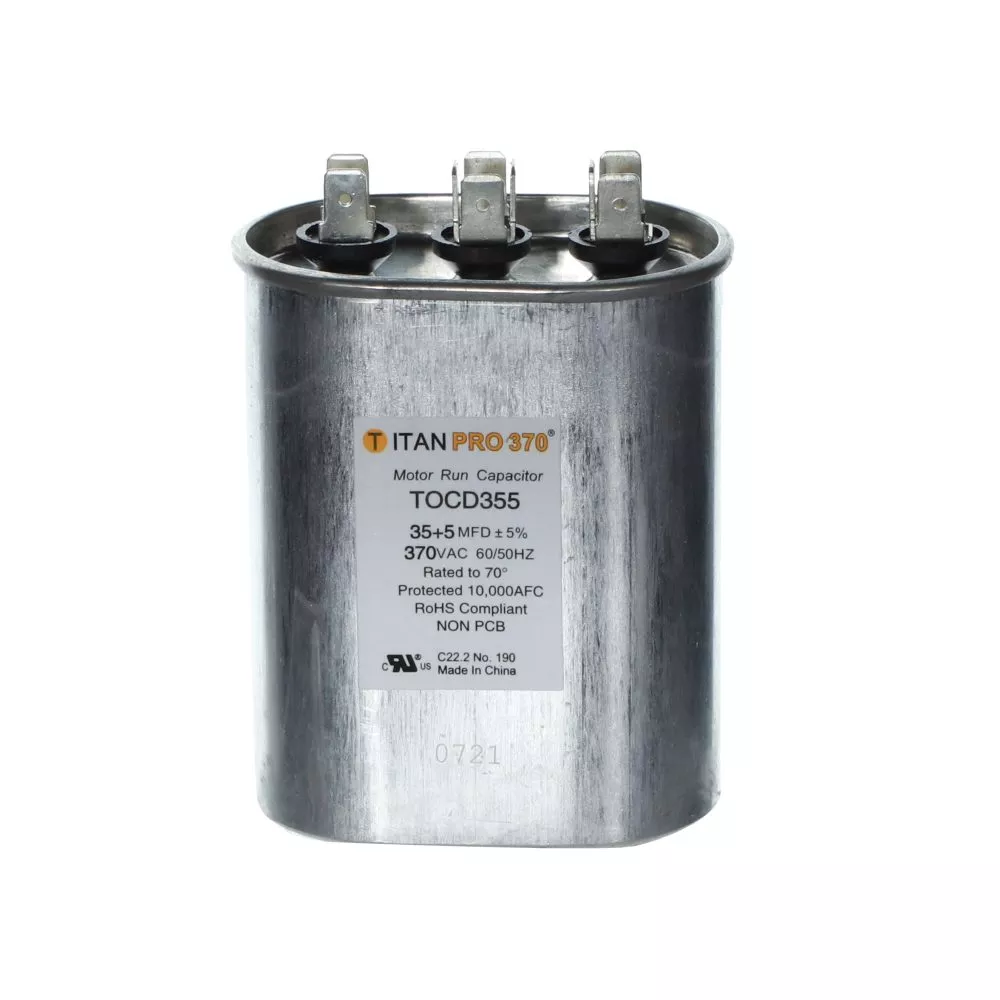

The Packard TOCD355 is a Titan ProCap 35+5 MFD, 370V, Oval Dual Run Capacitor for HVAC motors and compressors. Titan ProCap run capacitors deliver dependable performance for residential and light-commercial HVAC compressor and fan motor applications. Built to exacting quality standards with metalized polypropylene film technology for self-restoration in the event of a breakdown, and a UL-approved pressure-sensitive interrupter for safe end-of-life removal. This dual-rated capacitor houses two capacitance values in a single unit, powering both the compressor and the fan motor simultaneously – simplifying installation and reducing component count.
Features:
- Oval form factor for standard HVAC mounting
- 60,000-hour rated operating life
- Meets EIA-456-A industry performance standard
- UL-approved pressure-sensitive interrupter for safe end-of-life circuit removal
- Metalized polypropylene film technology – self-restoring
- Patented corrosion-resistant, environmentally friendly dielectric oil
- Dual capacitance powers compressor and fan motor in a single unit
Specifications:
| Capacitance | 35+5 MFD |
| Voltage Rating | 370V |
| Shape | Oval |
| Type | Dual Run |
| Operating Life | 60,000 hours |
