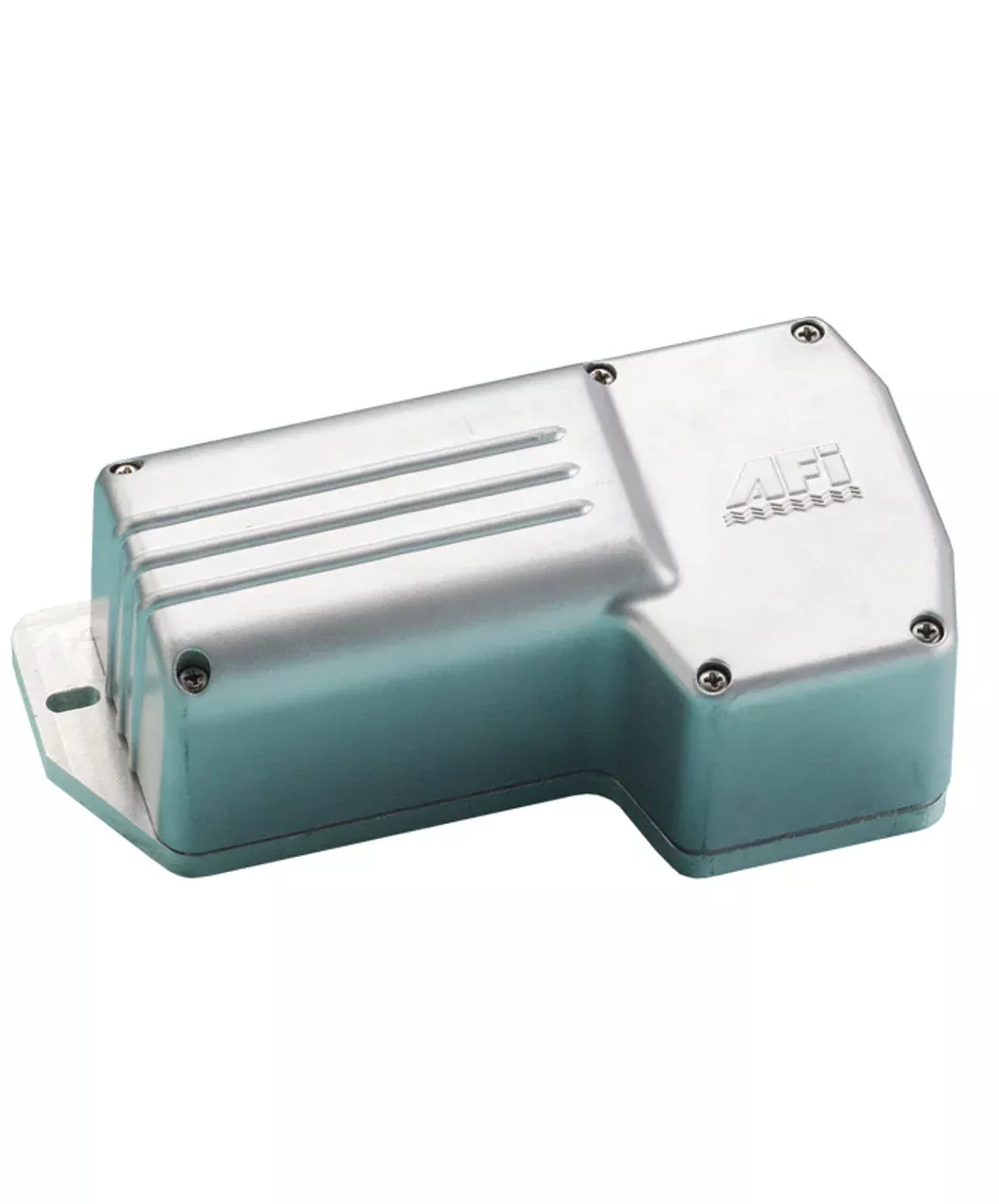

The Marinco 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22″ Deluxe arm and 22″ Deluxe blade combination or a 20″ Premier arm and 20″ Premier blade combination.
Factory pre-set sweep angle of 110 degree
Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
Two speed motor
Sealed 6″ wire leads, 16 AWG
Adjustable right or left self parking
0.625″ diameter shaft (16 mm)
Coast to park
RF shielded circuitry
Measures approximately 7.75″ L x 4″ W x 2.75″ D
Stall torque: 109 in-lbs (125 kgfor cm; 12.3 Nm)
Stall current: 11.5-13.0 amps
No load current: 0.5-1.2 amps
Replaces AFI 2000 motor
Intermittent Wiper Motor Controller => Single Speed 76090; Dual Speed 76080
Features & Specifications
- Manufacturer Part Number: 71012
- Dimensions: 9.5 × 7.4 × 7.2
- Shaft: 5/8″ x 2-1/2″
- Size Pole it Holds: 7-3/4″ L x 4″ W x 2-3/4″ D.
- Sweep: 110
- Voltage: 12 VDC
