Maretron Mid DoubleEnded Cordset 3 Meter Gray DMDG1DF030

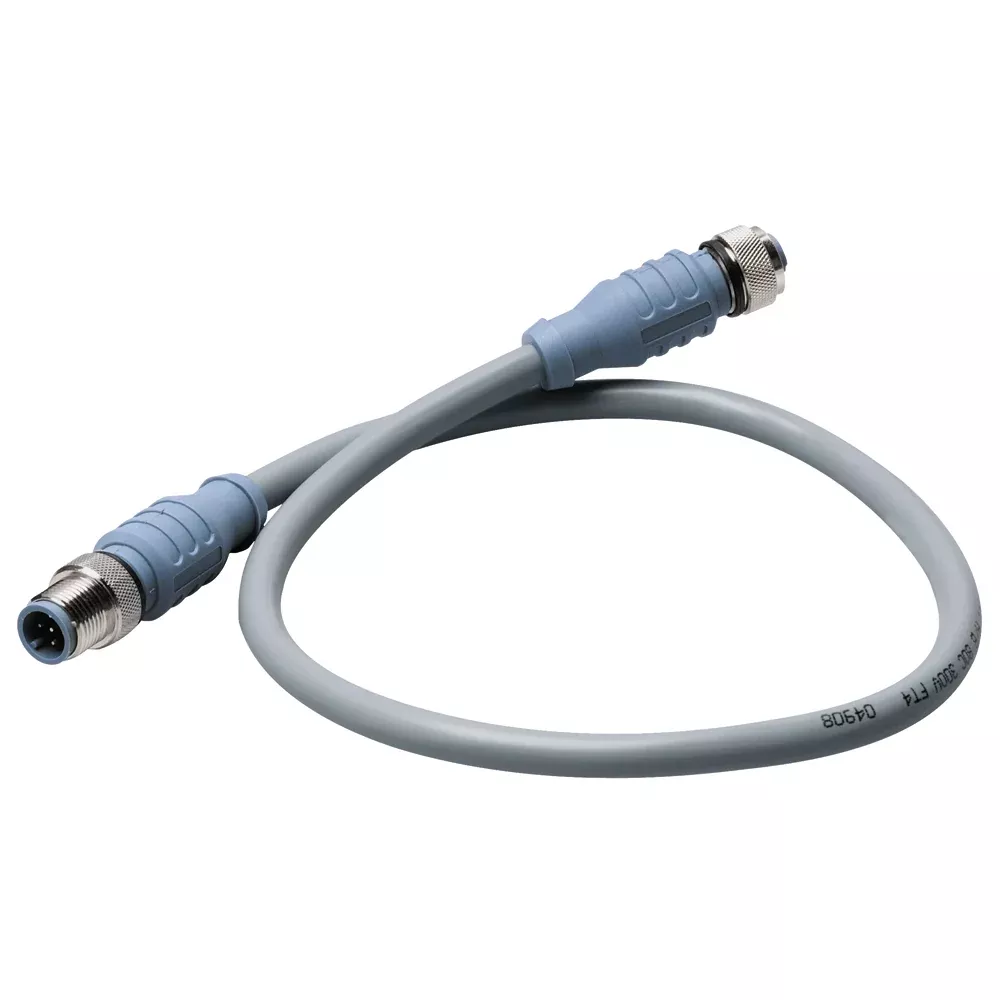

Maretron Mid Double-Ended Cordset – 3 M Gray

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59″

  Electrical

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable

• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS

• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

Specifications:

• Connection Gender: Male-Female
• Data Interface: NMEA 2000
• Cable Length (Meters): 3m
• NMEA 2000 Connectors: Backbone/Drop Cables
• Box Dimensions: 1″H x 6″W x 8″L WT: 0.8 lbs
• UPC: 873804001791
