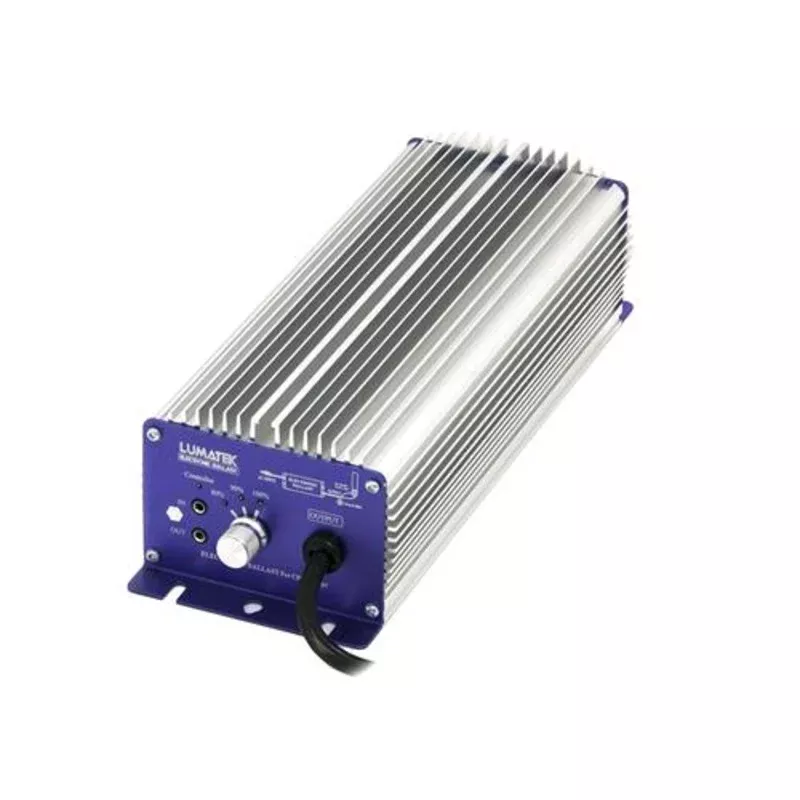

LUMATEK DIMMABLE AND CONTROLLABLE BALLAST 630W CMH

LUMATEK BALLAST 630W CMH DE

Lumatek presents the 630W Controllable & Dimmable CMH Ballast. This reliable digital ballast has been successfully used in cultivation facilities around the word and uses high frequency technology to efficiently fire and operate 630W Double-Ended (DE) Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps.

CMH technology creates high energy PAR/PPF levels with low heat at full spectrum which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of>90%, CMH is perfect for growing high quality produce and essential oil extraction.

This ballast is for use with Lumatek 630W DE CMH lamp (4200K Daylight and 3100K Agro available). For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression. The new addition of Control capability allows you to easily monitor and regulate your grow room environment (Lighting timming, sunrise/sunset, digital 1% dimming, etc). By simply connecting the Lumatek Digital Panel (sold separately) into the TRS “Link” port on your controllable ballast.

More Light ? Less Heat ? Full Spectrum ? More Yield

Key Specifications:

Electronic ballast for 630W DE CMH lampsVoltage: 240V 50/60HzInput Current Max (A): 3.2AInput power: 668WOutput power: 630WPower factor:>0.97Efficiency: 95%Voltage range: 185 to 275VTHD: <10%Dimming: 80% – 90% – 100%CF: <1.7Operating frequency: high frequencyNo audible noise, no flickerEnvironment temperature for full load operation: 40?Enclosure temperature rise (?t): ) 30?Ballast IP rated: IP20Humidity: 90%Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectificationEMI suppression certifiedDimensions: 320 x 114 x 81mmWeight: 3.8 Kg
