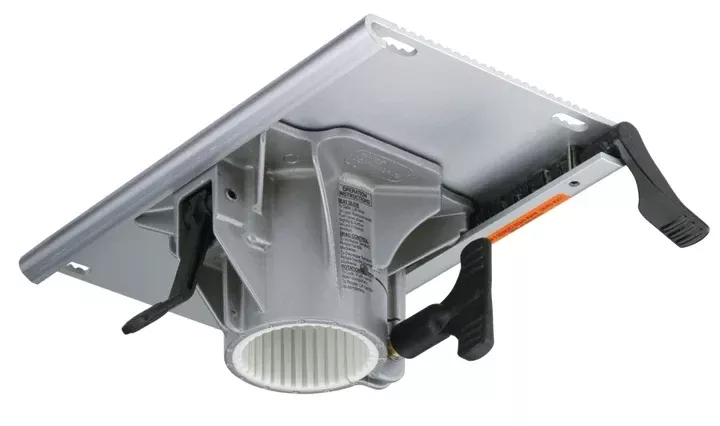

MILLENNIUM SERIES – SEAT SLIDE SYSTEM – SMOOTH SERIES
Model Numbers
22001
Low profile design allows 360? of rotation and 6″ of smooth, wobble-free fore and aft travel
Heavy duty anodized aluminum slide plate has standard 5″x12″ hole pattern to accommodate standard seat mounting holes
Positive Lock Spider – rotates 360, internal cup engages in 10? increments for positive stop lock (Secondary twist control offers variable drag adj. and can be tightened to lock in place)
Internal Delrin cup provides smooth, gaul-free operation.
Available in either left- or right-hand operation
Meets ABYC-H31, Type A Standards & Garelick performance standards
Powder coated finish
Includes retaining hardware (99302)
Specifications
Adds 1/2″ (1.25cm) to Pedestal height.
22000 : Positive Lock Slider & Spider Combination Left Hand Lever Silver Powder Coat Finish
22001 : Positive Lock Slider & Spider Combination *Right Hand Lever Silver Powder Coat Finish
SLIDE : High tensile aluminum profile extrusion 13.75″ x 8″ (35cm x 20cm) plate, mounting hole pattern 5″ x 12″ (13cm x 30cm), Fore and Aft travel 6″ (15cm).
SWIVEL : High tensile aluminum 2 7/8″ (7cm) diameter, plastic internal cup. All stainless hardware.
*When seated, right hand operates slide lever.
