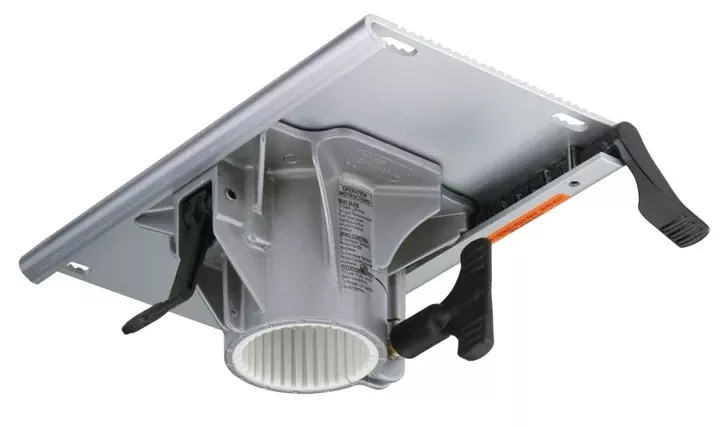

MILLENNIUM SERIES – SEAT SLIDE SYSTEM – RIBBED SERIES
Low profile design allows 360? of rotation and 6″ of smooth, wobble-free fore and aft travel
Heavy duty anodized aluminum slide plate has standard 5″x12″ hole pattern to accommodate standard seat mounting holes
Positive Lock Spider – rotates 360, internal cup engages in 10? increments for positive stop lock (Secondary twist control offers variable drag adj. and can be tightened to lock in place)
Internal Delrin cup provides smooth, gaul-free operation.
Available in either left- or right-hand operation
Meets ABYC-H31, Type A Standards & Garelick performance standards
Includes retaining hardware (99302)
Plain or powder coated finish
Specifications
Adds 1/2″ (1.25cm) to Pedestal height.
21000 : Positive Lock Slider & Spider Combination Left Hand Lever Silver Powder Coat Finish
SLIDE : 13.75″ x 8″ (35x20cm) slide plate, 5″ x 12″ (13x30cm) mtg hole pattern , 6″ (15cm) travel
SWIVEL : 2 7/8″ (7cm) diameter.
Features & Specifications
- UPC: 0038203210001
- Description: Ribbed, Left Hand Lever
- Handle Location: Right Hand Lever
