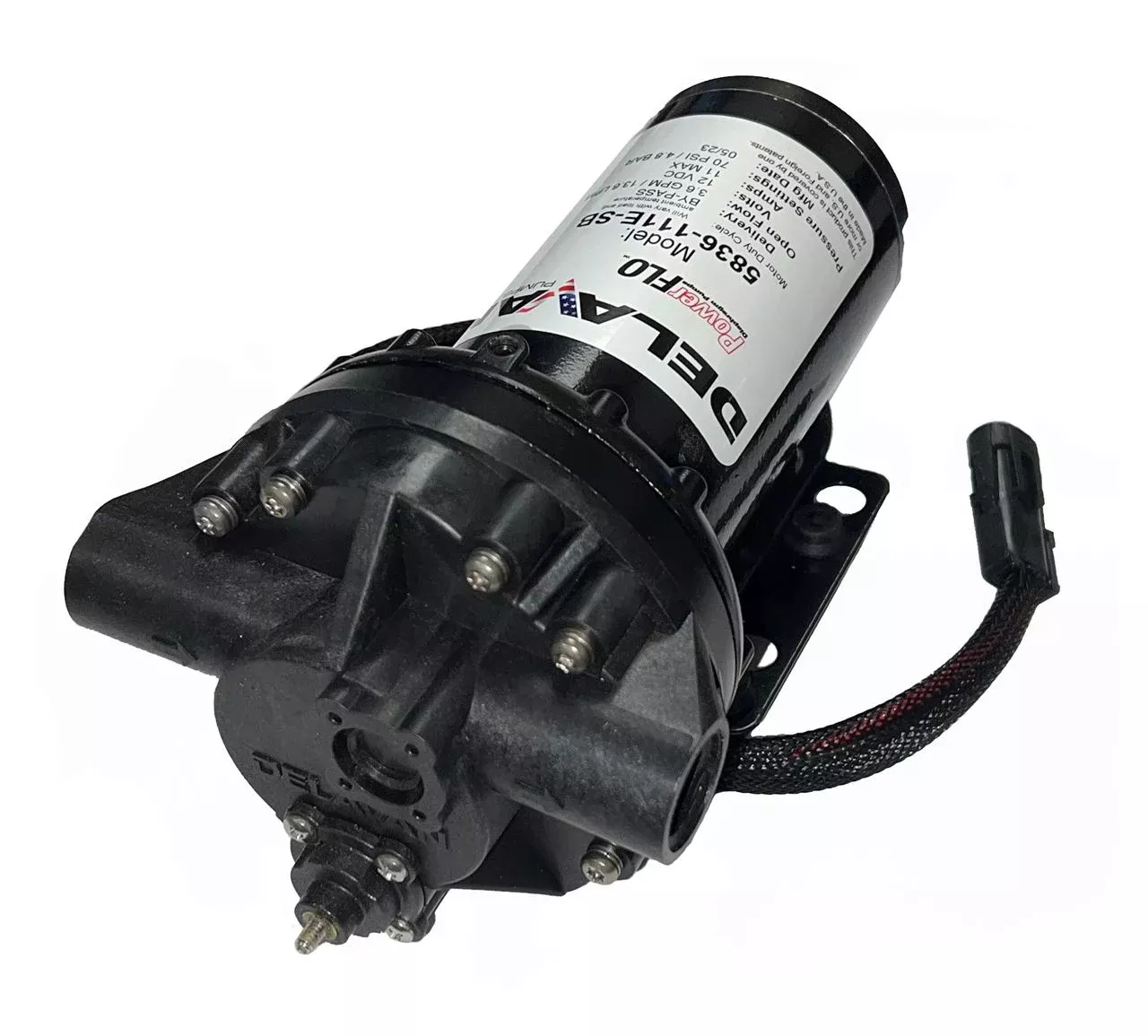

Delavan PowerFLO™ 5836 Series 3.6 GPM 60 PSI Diaphragm Pump. Bypass Design – Continuous operation
Features:• Certified to NSF/ANSI Standard 61 & 372• Made in the USA• 100% Factory tested• 2 Year warranty from date of purchase
Motor:• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated• Leads: 14 AWG, 12” long with Delphi Weatherproof Electrical 2 Pin Connector• Amps: 11 Max• Duty Cycle: See Heat Rise graph
Materials of Construction:• Motor Shell: Coated Steel• Housing: Polypropylene • Valves: Viton• Diaphragm: Santoprene• Fasteners: Stainless Steel
NSF/ANSI Certified:• NSF/ANSI Standard 61 – Drinking Water System Components – Health Effects • NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act
Manufacturer Recommendation:• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor
Pump:• Bypass Design – Continuous operation • Type: 5-chamber positive displacement• Capable of being run dry• Excellent self-priming capability • Liquid Temperature: 140° F Max.• Priming Capabilities: 14’• Max. Flow: 3.6 GPM• Max Pressure: 60 PSI • Pressure Settings: 70 PSI• Inlet/Outlet Ports: 1/2” FNPT• Packaging: Small box• Weight: 7.0 lbs
