Compare the available Blue Sea configurations by exact manufacturer part number and the distinguishing option shown below.
Product Information
| Product Type | Circuit Breaker |
|---|
Key Features

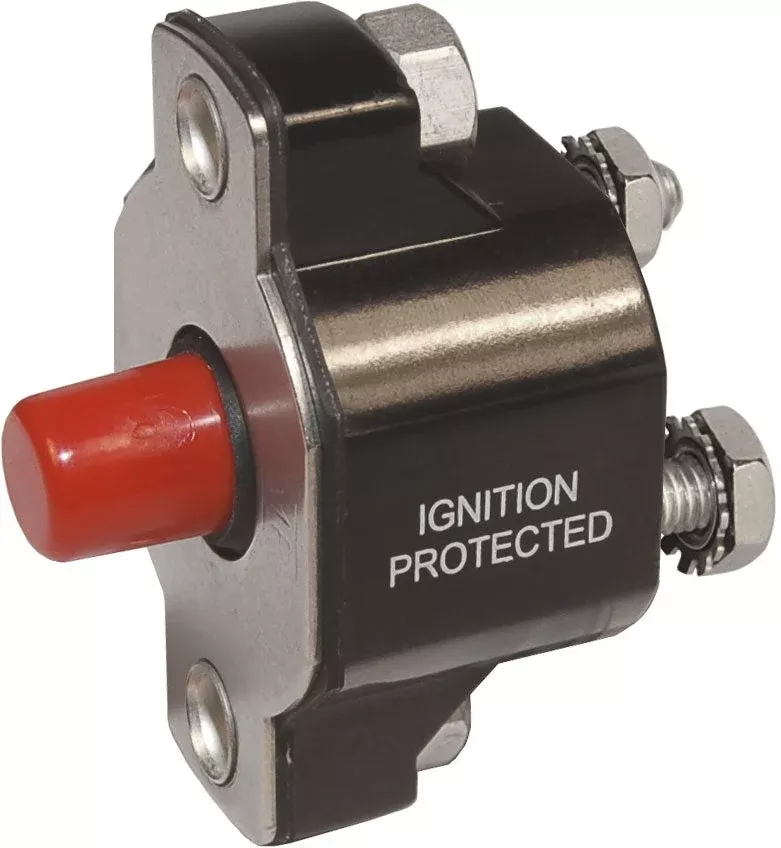

- Ignition protected – Safe for installation aboard gasoline powered boats
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Can be used as Main, Branch, or 24 hour circuit protection
- Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
- Compact design enables high density circuit protection configurations
- Weatherproof
Specifications
| Maximum Voltage | 32V DC, 120V AC |
|---|---|
| Terminal Type | 10-32 stainless steel studs |
| Approvals | UL 1077, UL 1500, SAE J553 |
| Housing Material | Plastic |
| Interrupt Capacity | 3000A @ 120V AC , 5000A @ 32V DC |
| Mounting Hardware | 8-32 screws |
| Safety Features | “Trip Free” design cannot be held “ON” during fault |
| Voltage Compatibility | DC |
Available Options
| MPN | Configuration |
|---|---|
| 2138-BSS | 15A |
| 2139-BSS | 20A |
| 2141-BSS | 40A |
| 2143-BSS | 60A |
Included
- Included captive star lock washers makes terminal ring installation easy and meets anti-rotation requirements
Important Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
