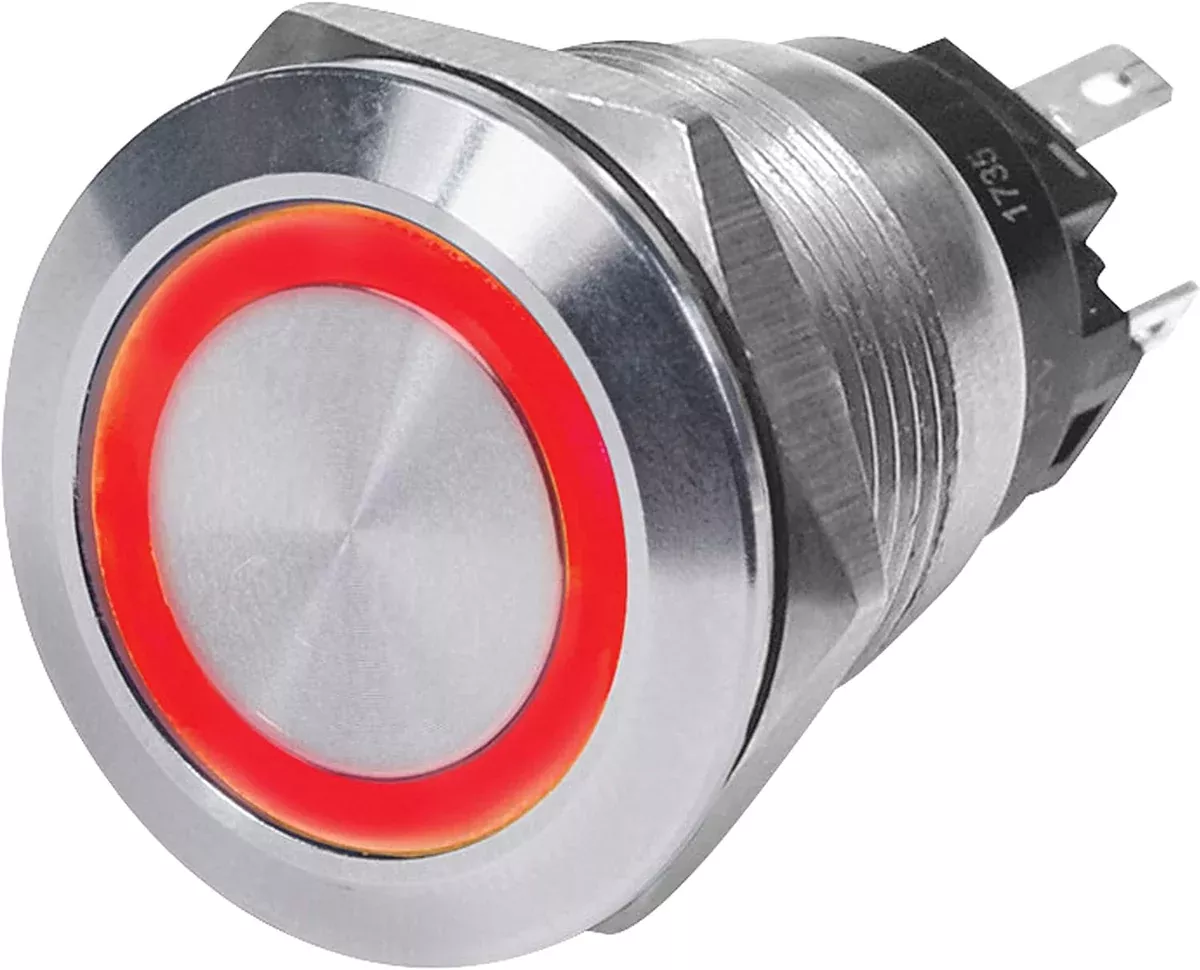

The Blue Sea 4163-BSS 10A Push Button LED Ring Switch OFF-(ON) Red provides a defined switching action for a marine or specialized-vehicle electrical circuit.
Can be wired for normally open or normally closed; 10A continuous.
Product Information
| Manufacturer Part Number | 4163-BSS |
|---|
Key Features
- Can be wired for normally open or normally closed
- 10A continuous
- Installs with .110inch quick connects (included in retail package)
- Single Pole Double Throw or Single Pole Single Throw
Specifications
| Amperage | 10A @ 12V DC |
|---|---|
| Nominal Voltage | 12V DC |
| Action | OFF-(ON) |
| Mounting Hole | 19mm |
| Color | Red |
| Illumination | Independent Separate contacts for LED power |
| Maximum Led Operating Current | 20mA |
| Maximum Operating Temperature | 70 Degree C |
| Maximum Storage Temperature | 85 Degree C |
| Minimum Operating Temperature | 10 Degree C |
| Minimum Storage Temperature | 55 Degree C |
| Switching Cycles | 18,000 |
