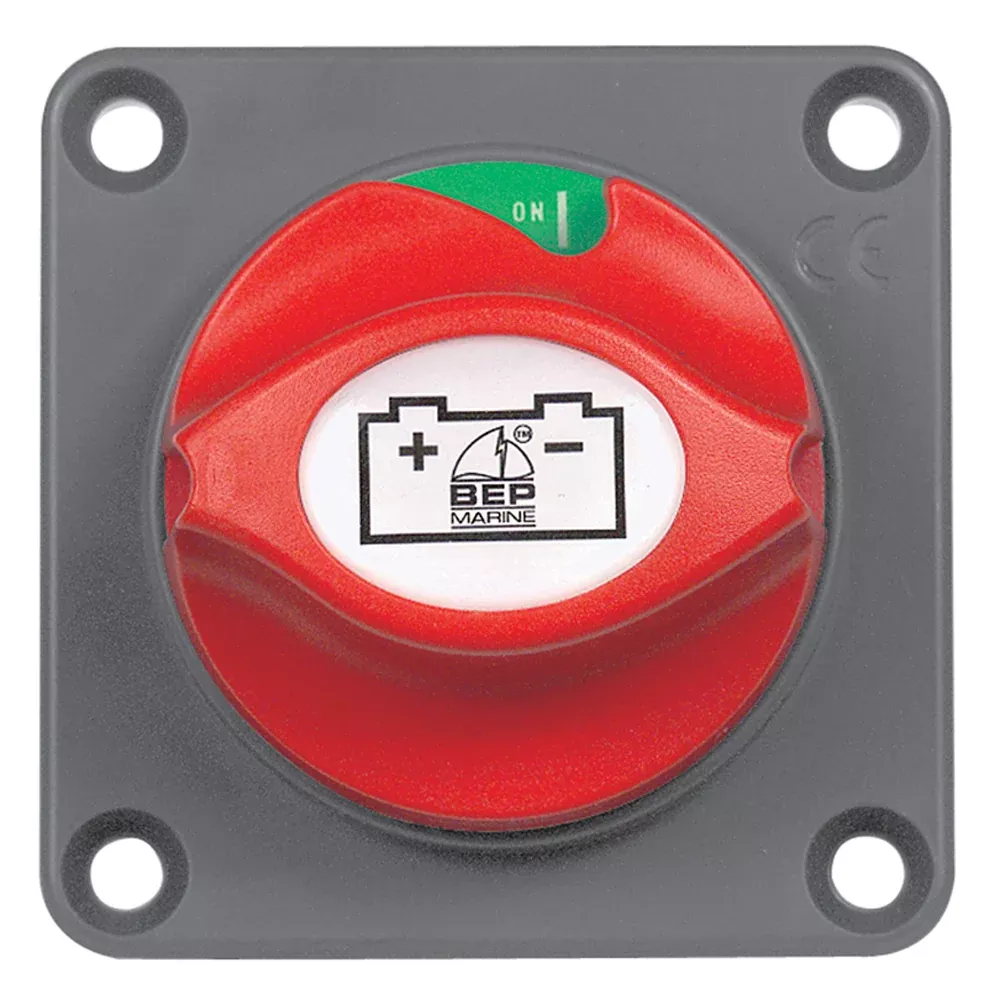

Panel-Mounted Battery Master Switch
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.
- Compact, lightweight
- Removable key
- Countersunk recesses for surface mount application
- Standard 2-1/16″ (52 mm) hole cut out (same as standard gauge hole)
- Inside: captive inserts for 3/16″ (4.8 mm) nuts providing full access for cables with no restrictions
- Standard interchange label system
- Molded in high temperature, fiber reinforced plastics
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Features & Specifications
- Manufacturer Part Number: 701-PM
- UPC: 0870216005355
- Dimensions: 7 × 4 × 3 / 6.5 × 3.95 × 3.5
- Category: Electrical | Battery Management / Electrical | Switches
- Compact, lightweight
- Removable key
- Countersunk recesses for surface mount application
- Standard 2-1/16″ (52 mm) hole cut out (same as standard gauge hole)
- Inside: captive inserts for 3/16″ (4.8 mm) nuts providing full access for cables with no restrictions
- Standard interchange label system
- Molded in high temperature, fiber reinforced plastics
- Amps: 275 (Continuous)
- Mount Type: Panel Mount
- Rating: Continous: 275, Intermittent: 455, Cranking: 1250
- Size: 2-11/16″W x 2-11/16″H x 2-5/8″D
- Stud Size: 2 x 3/8 inch
- Voltage: 17685
