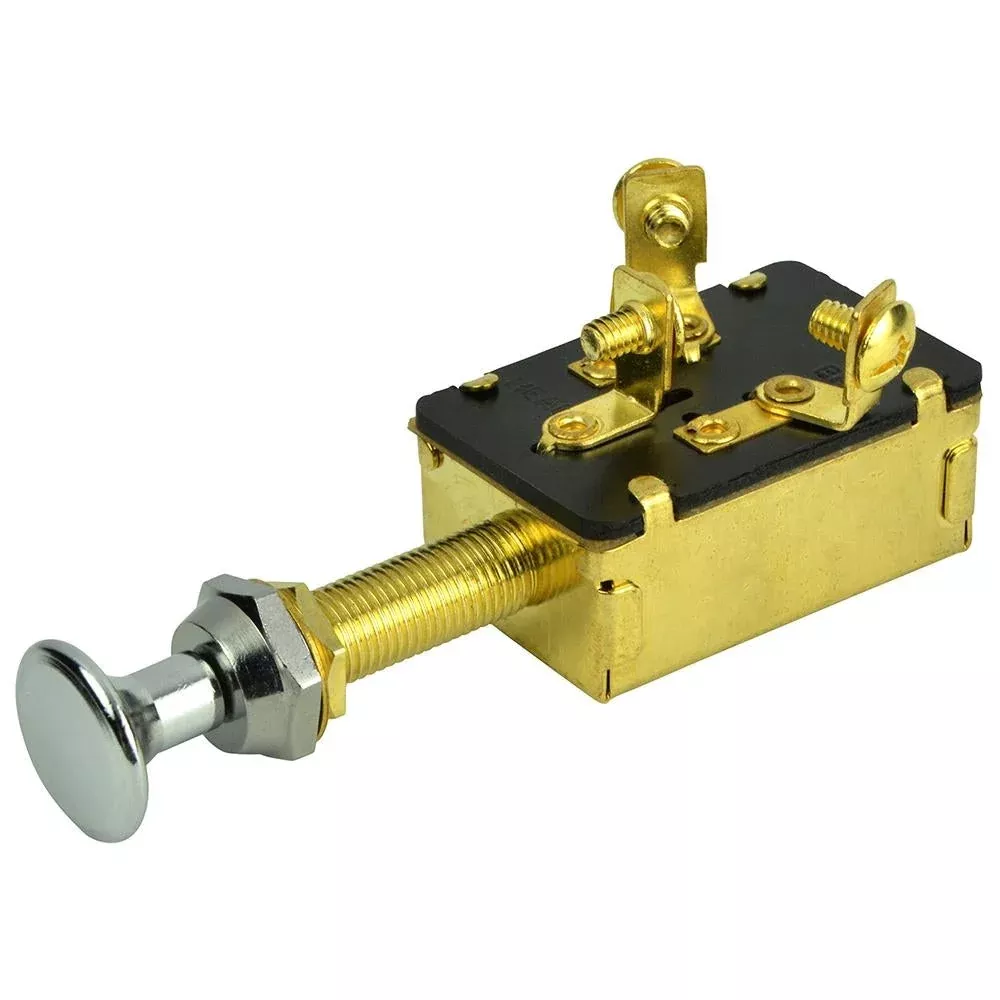

3-Position SPDT Push-Pull Switch – OFfor ON1/ON1 & 2
Single pole, double throw switch turns on position 1 or position 1 and 2.
Features:
- Heavy-duty, noncorrosive construction with moisture-repellent insulators
- Brass case, stem, terminals and mounting hardware
- All knobs are screw-on type
- Nominal voltage is 6-36V DC.
- Rated for 10A at 12V DC
- 8-36 screw terminals
- Fits panels up to 1″ thick
- Same as Cole Hersee part number M-476
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Features & Specifications
- Manufacturer Part Number: 1001301
- UPC: 0870216000000
- Well suited for managing a variety of single or multiple circuit lighting applications
- Shock and weather resistant for use in harsh marine and industrial environments
- Suitable for 6?36V system configurations with up to 10A ratings (12V)
- Positions: Off/On1/On1&2
- Replaces: CH M-476
- Terminals: 8-32 screw
- Type: SPDT
