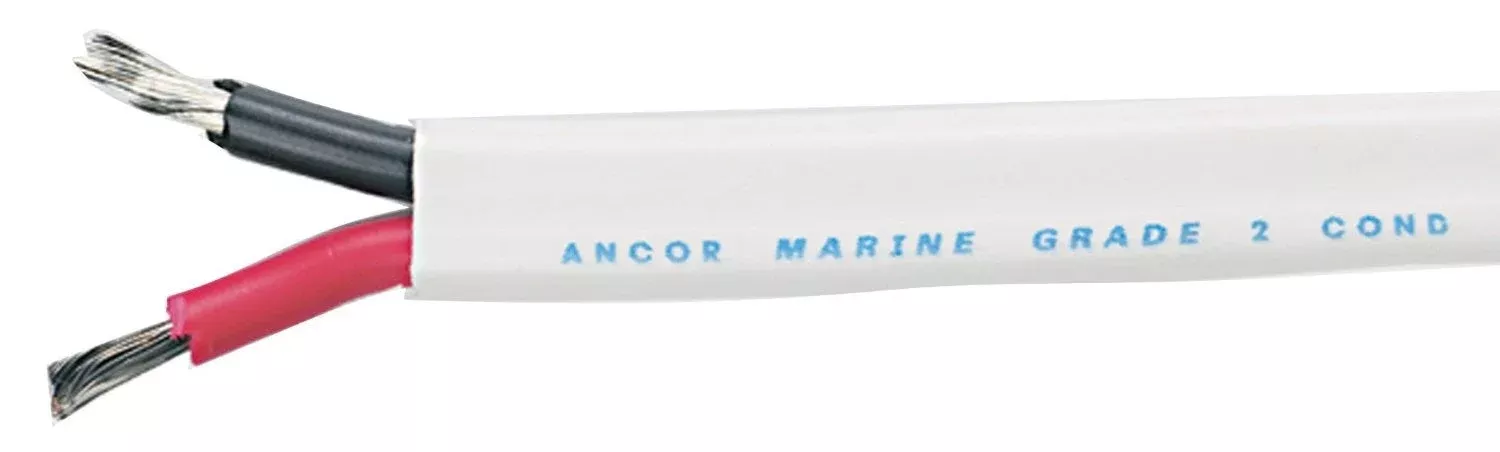

Standard Duplex Cable
Features:
- ANCOR Duplex, Triplex and Multi-Conductor Cables are made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing
- Outer jacket is made for easy removal and provides the best abrasion resistance available
- ANCOR’s proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105 Degree C dry and 75 Degree C wet
- Inner conductors are correctly color-coded to ABYC standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Compatibility, Limitations & Notices
- WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
Accessories
- 48373|48376|48379|48382
- 48361|48364|48369
- 42086|42090|42092|48531|48532|48533|48534|55430|55432|55434|55436|55439|55441|55585|55587|55588
- 55429|55430|55432|55433|55434|55435|55436|55437|55438|55439|55440|55441|55584|55586
- 252244|252245|252246|252241
- 252234|252235|252236
- 309299|315299|312299|312399|312499|312599|312699|309225|312325|312225|312425|312625|312525|315225|315325|315399
- 309203|309225|312325|312303|312225|312203|312425|312403|312603|312625|312503|312525|315203|315303
Available Options
| Manufacturer Part Number | Guage | Color | Length (Feet) | Gauge | Dimensions | UPC |
|---|---|---|---|---|---|---|
| 120710 | 6 | Black/Red | Sold By The Foot | 6/2 AWG | 12 × 1 × 1 | — |
| 120910 | 8 | Black/Red | Sold By The Foot | 8/2 AWG | 12 × 1 × 1 | — |
| 121110 | 10 | Black/Red | Sold By The Foot | 10/2 AWG | 12 × 1 × 1 | — |
| 121310 | 12 | Red/Black | 100′ | 12/2 AWG | 7 × 6 × 4 | 0091887123050 |
| 121510 | 14 | Red/Black | Sold By The Foot | 14/2 AWG | 12 × 1 × 1 | — |
| 121710 | 16 | Red/Black | Sold By The Foot | 16/2 AWG | 12 × 1 × 1 | — |
