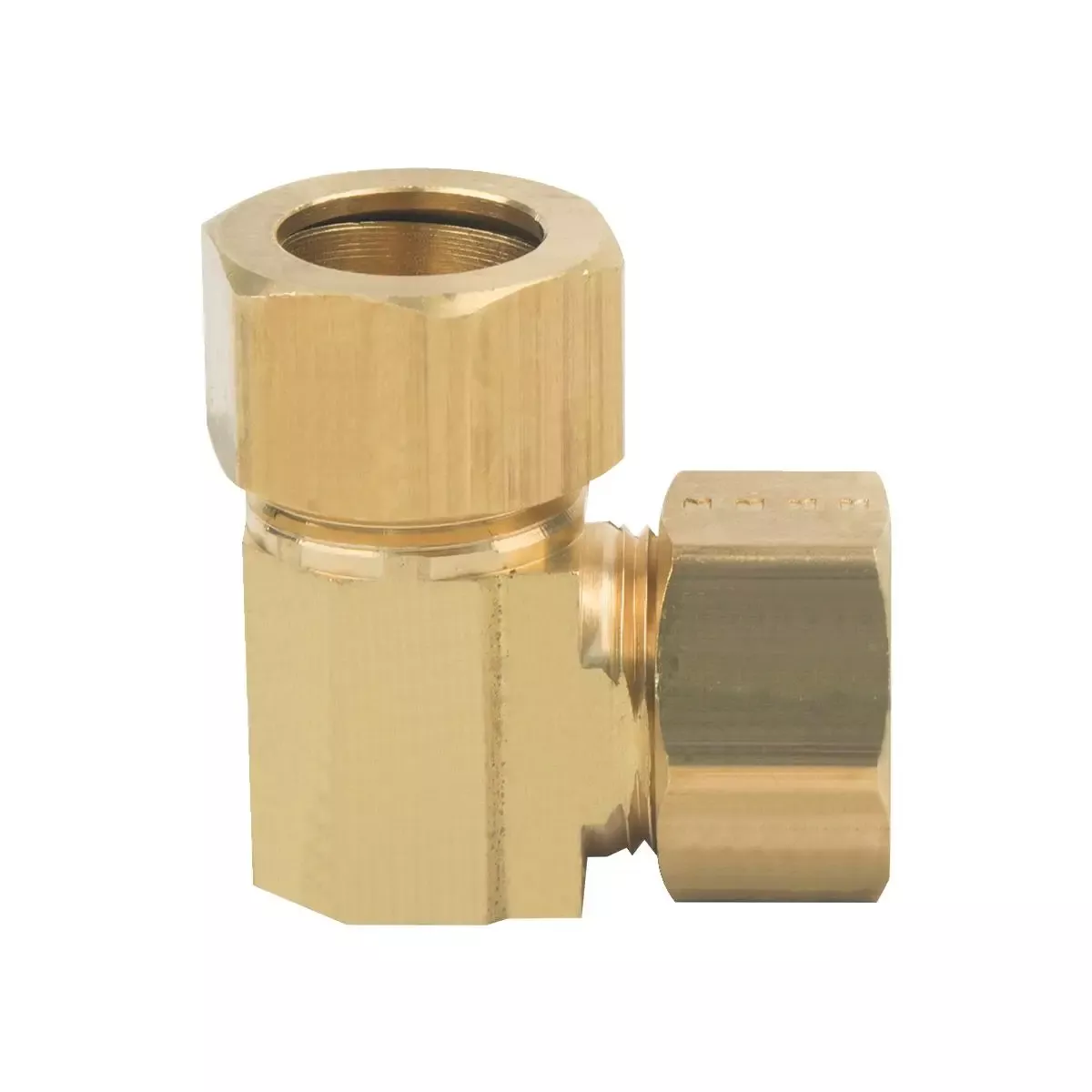

BrassCraft 65-10X – 5/8 inch Compression 90° Elbow, Brass Construction
The BrassCraft 65-10X is a 5/8 inch compression 90-degree elbow fitting designed to connect two sections of tubing at a right angle. Manufactured from corrosion-resistant brass, this compression elbow offers secure, leak-resistant joints without the need for flaring, soldering, or specialized equipment.
Application and Use
This elbow fitting is suitable for use with copper, aluminum, and plastic tubing in water, oil, air, and inert gas systems. Commonly installed in both residential and commercial plumbing, HVAC, and instrumentation applications, it supports a working pressure up to 150 psi and operates within a -65°F to 250°F temperature range.
Technical Specifications
- Fitting Type: 90-Degree Elbow
- Tubing Size: 5/8 inch OD
- Material: Brass
- Connection Type: Compression (no soldering or flaring required)
- Working Pressure: 150 psi
- Temperature Range: -65°F to 250°F
Contractor-Grade Benefits
- ✔ Time-Saving Installation: Designed for quick, tool-assisted assembly using standard compression fittings
- ✔ Reliable Seal: Compression design delivers dependable sealing performance under typical operating conditions
- ✔ Corrosion-Resistant: Brass body resists environmental and chemical corrosion in common plumbing and mechanical settings
Installation Guidance
Ensure tubing is properly cut, deburred, and inserted fully into the fitting. Tighten the compression nut with a wrench until resistance is met, then tighten slightly more as specified by installation guidelines. Always verify local code compliance prior to installation.
Summary
The BrassCraft 65-10X 5/8 inch Compression 90° Elbow is a dependable solution for right-angle tube connections in systems requiring durability, chemical resistance, and ease of assembly. Ideal for service work, retrofits, and new installations where flareless fittings are preferred.
