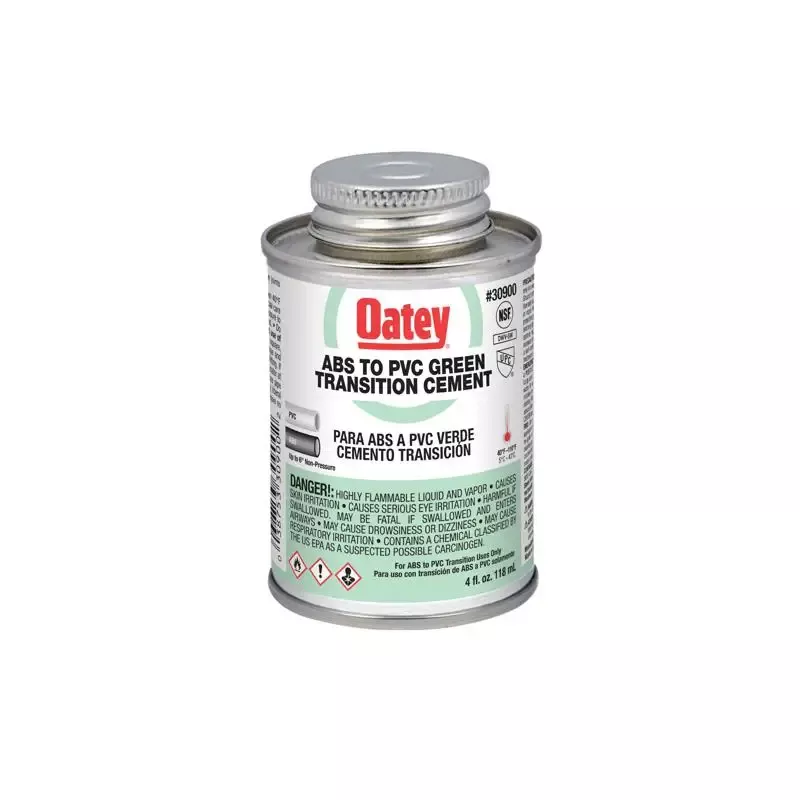

The Oatey 30900 ABS to PVC Transition Cement provides a strong, reliable bond between ABS and PVC piping systems, featuring a medium-bodied, fast-setting formula in a convenient 4 oz can.
The Oatey 30900 ABS to PVC Transition Cement is specially formulated to create a durable solvent weld between ABS and PVC plastic pipes and fittings. This professional-grade, medium-bodied cement offers a fast-setting, translucent green formula that ensures proper application visibility and a secure bond. Ideal for drain, waste, and vent (DWV) systems, it delivers long-lasting performance while meeting ASTM and plumbing code requirements. Packaged in a 4 oz can with an applicator brush, it is suitable for both residential and commercial piping installations.
- Model number 30900 identifies the Oatey ABS to PVC Transition Cement in a 4 oz can with integrated brush applicator.
- Designed for joining ABS to PVC plastic piping systems in DWV applications.
- Features a medium-bodied, fast-setting green formula for visible and efficient application.
Technical Data & Performance
- Product Type: Transition Cement.
- Brand: Oatey.
- Model: 30900.
- Application: ABS to PVC plastic pipe and fittings.
- Form: Liquid.
- Color: Translucent green – provides visible indication of cement application.
- Container Size: 4 oz (118 mL) metal can with brush-in-cap applicator.
- Body Type: Medium-bodied – provides strong coverage with easy brush flow.
- Set Time: Fast-setting – initial set in 2 minutes at 60–100°F (16–38°C).
- Full Cure Time: 24 hours under normal conditions before pressurization.
- Viscosity: Medium for smooth, even coating and effective pipe fusion.
- VOC Content: Low VOC formulation meeting environmental compliance standards.
- Odor: Strong solvent odor – use with adequate ventilation.
- Base: Solvent blend containing acetone, MEK, and PVC resin modifiers.
- Flash Point: -4°F (-20°C).
- Specific Gravity: ~0.92.
- Solubility: Completely soluble in ketone solvents.
- Application Temperature Range: 40°F to 110°F (4°C to 43°C).
- Pressure Rating: Suitable for non-pressure DWV systems only.
- Pipe Compatibility: ABS to PVC joints up to 6-inch diameter.
- Surface Preparation: Use on clean, dry, and square-cut pipe ends; apply primer when required by code.
- Application Method: Brush-on using included applicator cap.
- Drying Characteristics:
- Initial Set: ~2 minutes.
- Handling Strength: ~15 minutes.
- Full Cure: ~24 hours.
- Compliance:
- Meets ASTM D3138 – Standard Specification for Solvent Cements for Transition Joints Between ABS and PVC Pipe and Fittings.
- Complies with UPC and CSA B181.1/B181.2 plumbing codes.
- Low-VOC compliant per SCAQMD Rule 1168.
- Material Compatibility: Safe for ABS and PVC pipe and fittings; not for CPVC, polyethylene, or metal.
- Corrosion Resistance: Excellent – forms a chemically fused joint resistant to water and moisture.
- Shelf Life: 3 years (unopened container stored at room temperature).
- Storage Conditions: Store in tightly closed container at 40°F–110°F; keep away from heat, sparks, or flame.
- Dimensions (Container Approximate):
- Height: 3 inches.
- Diameter: 2.5 inches.
- Weight: ~0.4 lb (181 g).
- Packaging: Supplied in a metal can with brush-cap applicator for easy, controlled use.
- Warranty: Backed by Oatey Limited Manufacturer’s Warranty for product quality and performance.
Applications & Benefits
- Creates a strong solvent weld bond between ABS and PVC pipe and fittings.
- Medium-bodied formula provides consistent coverage and excellent flow control.
- Fast-setting green cement ensures quick joint assembly and easy inspection.
- Ideal for DWV (drain, waste, vent) systems in residential and commercial installations.
- Complies with ASTM D3138 and meets all major plumbing code standards.
