14″ x 30″ x 1″ Disposable Synthetic Warm Air Panel Filter, Merv 4

Product Overview

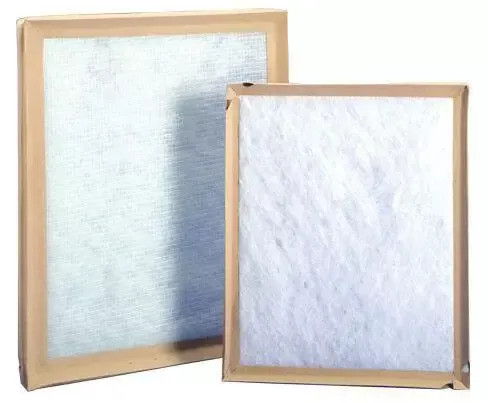

The Purolator® P312 Warm Air Filter (Model P312-14X30X1) is a disposable synthetic panel air filter engineered for HVAC systems serving residential, commercial, and light industrial applications. Utilizing bonded polyester fiber media and a heat-sealed Monobond™ pinch frame, this filter delivers consistent mechanical strength, uniform air distribution, and reliable particulate retention under a range of environmental and operational conditions.

Technical Specifications

• Manufacturer: Purolator®
• Model: P312-14X30X1
• Nominal Size: 14 in. x 30 in. x 1 in.
• Filter Type: Disposable Synthetic Panel Filter
• Media Composition: Non-woven polyester fibers bonded into a progressive-density structure
• Frame Construction: One-piece Monobond™ pinch frame fabricated from post-consumer recycled materials
• Seal Method: Continuous thermal bond securing media to the frame perimeter to prevent air bypass
• Binder Type: High tensile strength adhesive binder providing structural integrity under temperature and humidity variation
• Media Design: Interlocking fiber matrix forming multiple lint and dust capture zones
• Dust Holding Capacity: High, with balanced distribution and minimal surface loading
• Airflow Resistance: Low static pressure for consistent HVAC system performance
• Operating Range: Maintains form and seal integrity under variable temperature and humidity conditions
• Applications: Warm air furnaces, HVAC return air plenums, and general ventilation systems
• Environmental Attribute: Frame constructed from post-consumer recycled material

Performance and Application

The P312 filter employs synthetic polyester media designed to maximize particulate capture efficiency while maintaining low resistance to airflow. Its progressive-density configuration enhances dust loading capacity and operational lifespan. The Monobond™ pinch frame construction creates a continuous, heat-sealed bond between media and frame, eliminating corner failure points and ensuring uniform filtration across the surface. The non-cellulose media offers moisture resistance and durability for variable system environments.

Usage Notes

Install in accordance with airflow direction indicated on the frame. Inspect regularly during scheduled service intervals and replace when visible dust accumulation occurs or system static pressure increases. The P312 is intended for single-use operation; cleaning or reuse is not recommended. Store flat in a dry environment prior to installation to maintain frame integrity.

Summary

Purolator® P312-14X30X1 Warm Air Filter provides dependable synthetic media filtration with a rigid Monobond™ heat-sealed frame for professional HVAC systems. Engineered for balanced airflow, mechanical strength, and high dust-holding performance, it ensures reliable service across residential, commercial, and light industrial air handling applications.
