Product Overview

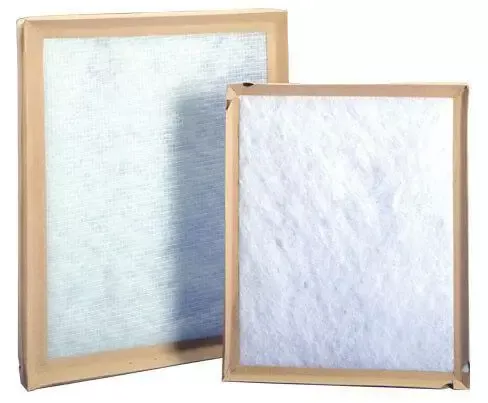

The Purolator® P312 Warm Air Filter (Model P312-14X20X1) is a disposable synthetic panel air filter engineered for HVAC systems in residential, commercial, and light industrial environments. Built with bonded polyester fiber media and a precision heat-sealed Monobond™ pinch frame, the P312 delivers uniform airflow, structural rigidity, and consistent particulate retention under a wide range of operating conditions.
Technical Specifications
- Manufacturer: Purolator®
- Model: P312-14X20X1
- Nominal Size: 14 in. x 20 in. x 1 in.
- Filter Type: Disposable Synthetic Panel Air Filter
- Media Composition: Non-woven polyester fibers bonded in a progressive-density structure
- Frame Construction: One-piece Monobond™ pinch frame fabricated from post-consumer recycled materials
- Seal Method: Continuous thermal bond joining media to frame perimeter to prevent air bypass
- Binder Type: High tensile strength binder providing mechanical stability and long-term seal integrity
- Filtration Characteristics: Interlocking fiber configuration creating multiple lint and dust retention zones
- Dust Holding Capacity: High, with even particulate distribution and reduced surface loading
- Airflow Resistance: Low static pressure drop supporting efficient HVAC operation
- Operating Conditions: Maintains performance under variable temperature and humidity environments
- Applications: Warm air furnaces, HVAC return air plenums, and general air handling systems
- Environmental Attribute: Frame constructed using post-consumer recycled content
Performance and Application
The P312 filter series is designed to provide high-efficiency particulate capture while maintaining low resistance to airflow. The polyester fiber media features a progressive-density configuration that enhances dust-loading capacity and extends service intervals. The Monobond™ one-piece pinch frame construction, sealed under heat and pressure, forms a continuous bond that eliminates weak corners and prevents air bypass. The non-cellulose synthetic media maintains structural integrity and moisture resistance, ensuring reliable performance across varied HVAC applications.
Usage Notes
Install with the airflow direction corresponding to the arrow indicator printed on the frame. Replace at standard maintenance intervals or when visible particulate accumulation occurs. The P312 filter is designed for single-use service and should not be cleaned or reused. Store flat in a clean, dry location prior to installation to maintain frame and media alignment.
Summary
Purolator® P312-14X20X1 Warm Air Filter provides consistent performance and structural reliability through bonded polyester media and a precision heat-sealed Monobond™ frame. Engineered for professional HVAC applications, it ensures stable airflow, high dust-holding capacity, and dependable particulate filtration across residential, commercial, and light industrial systems.
