Product Overview

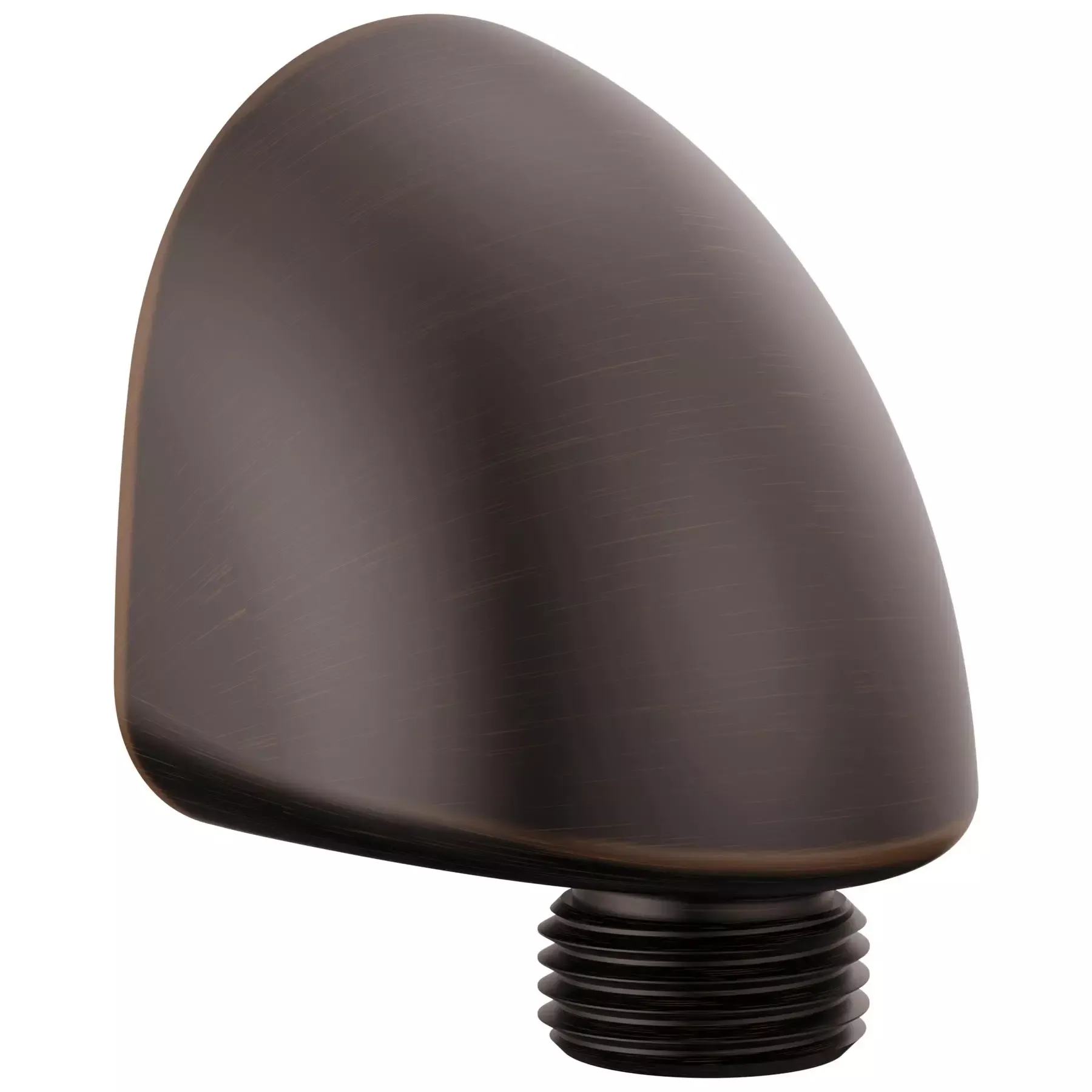

The Delta 50560-RB Wall Elbow is a professional-grade hand shower outlet designed for use with 1/2-inch NPT and NPSM connections. Engineered from solid brass and finished in Venetian Bronze, this wall elbow provides a secure and durable interface between the shower supply line and hand shower hose. Part of the Cassidy Collection, it delivers a clean, 90-degree outlet configuration for concealed plumbing installations and consistent performance in both residential and commercial applications.
Technical Specifications
- Manufacturer: Delta Faucet Company
- Model Number: 50560-RB
- Collection: Cassidy
- Description: Hand Shower Wall Elbow – 90° Outlet Connection
- Reference Number: 900825
- Nominal Size: 1/2 in
- Connection Type: 1/2 in NPT male inlet x 1/2 in NPSM female outlet
- Configuration: 90° wall-mounted outlet fitting
- Material: Solid brass
- Finish: Venetian Bronze (RB)
- Dimensions:
- Height: 2-3/16 in (55.6 mm)
- Width: 2-3/16 in (55.6 mm)
- Depth: 1-1/2 in (38.1 mm)
- Mounting Type: Wall-mounted, concealed connection
- Flow Direction: 90-degree transition from wall to hose connection
- Intended Use:
- Connection point for hand shower hose assemblies
- For use with Delta hand shower systems
- Suitable for new construction or retrofit shower installations
- Operating Pressure: Rated for standard plumbing systems up to 80 PSI
- Temperature Rating: Suitable for domestic hot and cold water systems up to 160°F (71°C)
- Performance Characteristics:
- Machined brass threads ensure a secure and leak-resistant seal
- Venetian Bronze finish provides corrosion and tarnish resistance
- Compact design enables tight installation in confined wall cavities
- Compliance and Standards:
- Complies with ASME A112.18.1 / CSA B125.1
- Manufactured under ISO 9001:2015 certified quality management
- Lead-free compliant per U.S. Safe Drinking Water Act
- Installation Requirements:
- Install using standard 1/2-inch NPT threaded pipe fittings
- Seal threads with approved pipe joint compound or PTFE tape
- Ensure outlet orientation aligns with hand shower hose connection
- Maintenance:
- Inspect connections during routine system maintenance
- Clean finish with non-abrasive materials only
- Compatibility:
- Delta Cassidy Collection fixtures and other compatible 1/2-inch hand shower systems
- Universal hand shower hoses with NPSM threaded fittings
- Country of Manufacture: United States
Summary
The Delta 50560-RB Wall Elbow is a 1/2-inch NPT x NPSM brass fitting with a 90-degree outlet configuration and Venetian Bronze finish. Measuring 2-3/16 inches square, it provides a secure, corrosion-resistant connection point for Delta hand shower systems, ensuring professional-grade durability and performance in concealed wall installations.
