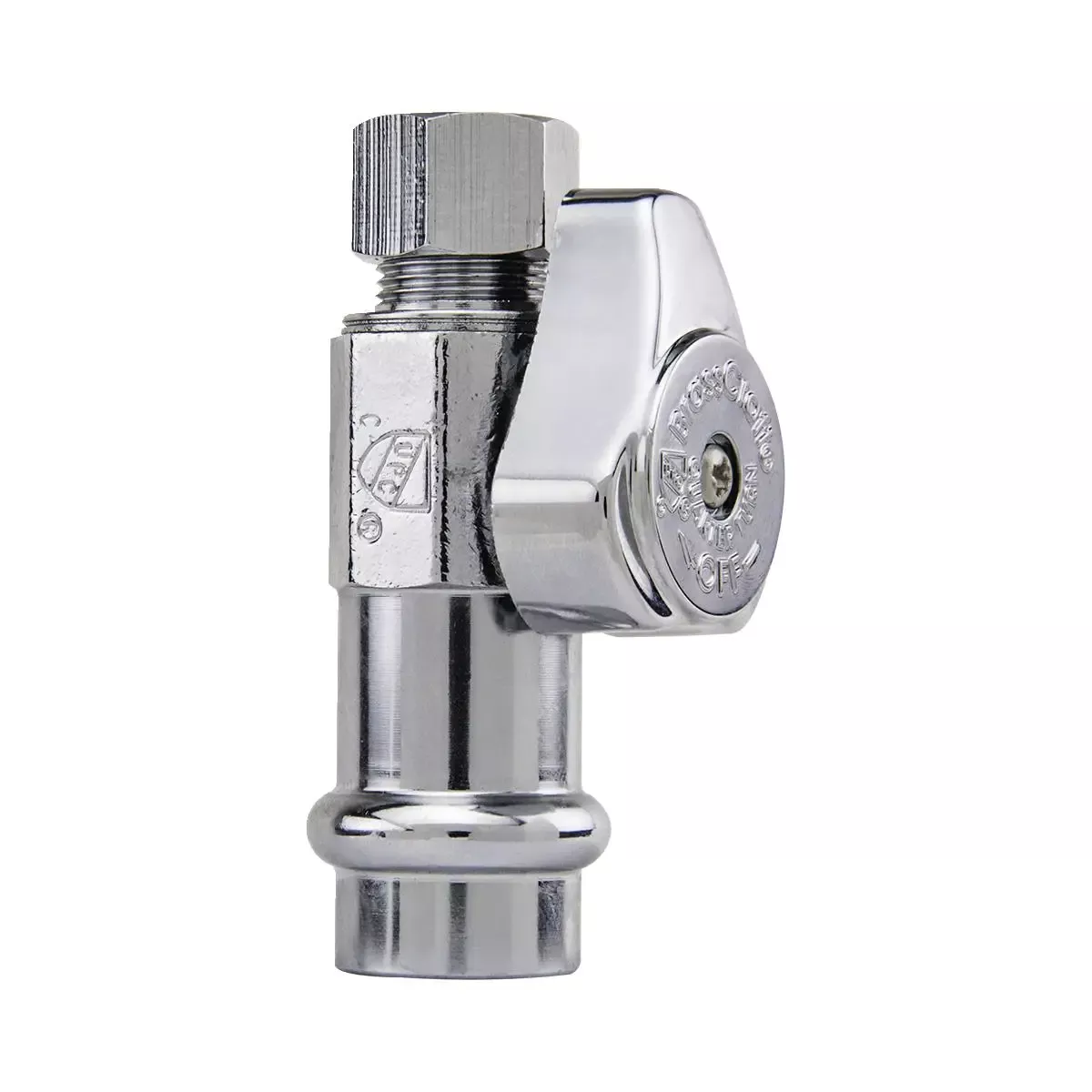

BrassCraft G2CP14X C1 1/2″ Nom Press x 3/8″ OD Compression Quarter-Turn Angle Stop Valve
The BrassCraft G2CP14X C1 is a quarter-turn angle stop valve featuring a 1/2″ nominal press inlet and a 3/8″ OD compression outlet. Designed for shutoff control to individual plumbing fixtures, this valve offers a secure press connection for copper tubing and is compatible with both wet and dry pipe systems. Each unit is 100% leak-tested and built to meet job site reliability standards.
Product Features
- Inlet Connection: 1/2″ nominal press-fit, compatible with ASTM B88 Type K, L, or M copper
- Outlet Connection: 3/8″ OD compression for fixture supply lines
- Valve Mechanism: Quarter-turn ball valve for consistent flow shutoff
- Body Construction: Forged brass with corrosion-resistant internal components
- Operation: Handle rotates 90 degrees for open/close functionality
- Leak Testing: Factory-tested to ensure sealing integrity under rated conditions
Specifications
- Model: G2CP14X C1
- Working Pressure: 125 PSI maximum
- Temperature Range: 40°F to 140°F
- Application: Fixture isolation in potable water systems
- Media: Water
Installation Notes
This valve is designed for use with standard copper tubing using a press connection tool. It can be installed on dry or pressurized lines, reducing downtime during service or retrofit work. Proper tube prep and press tool calibration are critical for ensuring a secure joint. Always follow applicable plumbing codes and manufacturer guidelines during installation.
Contractor Applications
The G2CP14X C1 is well-suited for both new construction and repair applications, especially where press-connect systems are in use. Its quarter-turn design offers a reliable shutoff solution with minimal effort, and its ability to be installed on wet systems increases flexibility in the field.
