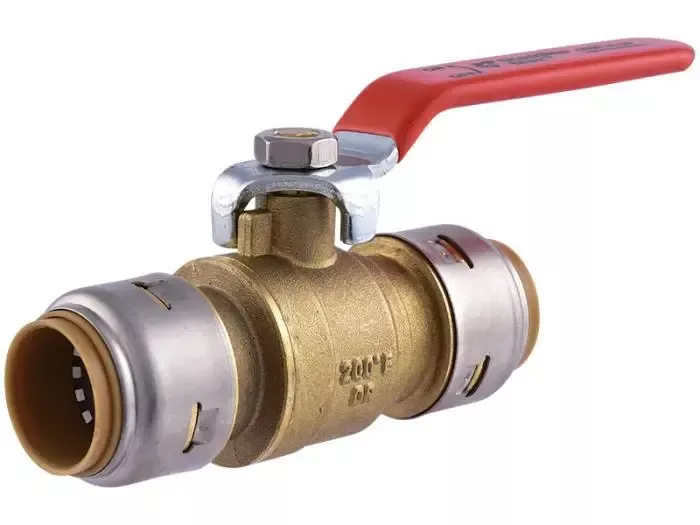

SharkBite® 1/2″ Push-to-Connect Full Port Ball Valve – Reliable Shutoff for Potable Water Systems
The SharkBite® 1/2″ Ball Valve offers a durable, full-port shutoff solution for potable water systems. Designed with a push-to-connect inlet and outlet, this valve allows for rapid, tool-free installation on copper, CPVC, PEX, and PE-RT pipe, saving time on the job while ensuring a secure, code-compliant seal.
Its forged lead-free brass body meets modern plumbing code requirements, while the quarter-turn lever provides smooth operation and reliable control for isolation or system shut-downs in residential and commercial installations.
Product Highlights
- Push-to-Connect Ends – Compatible with copper, CPVC, PEX, and PE-RT pipe with no need for soldering or special tools
- Full-Port Flow Path – Minimizes restriction and ensures maximum flow capacity
- Lead-Free DZR Brass – Certified for potable water systems and corrosion-resistant for long-term use
- Quarter-Turn Handle – Enables fast, positive shut-off and control
- Approved for Use Behind Walls and Underground (with wrap) – Provides installation flexibility where space or access is limited
Technical Specifications
- Size: 1/2″ nominal
- Connection Type: Push-to-Connect (both ends)
- Material: Forged Lead-Free Brass
- Pressure Rating: 200 psi
- Temperature Rating: 200°F maximum
- Certifications: NSF/ANSI 61, NSF 372, ASSE 1061, IAPMO Listed
Installation Guidance
Ensure pipe ends are clean and square-cut. Insert to proper depth until the pipe seats fully into the fitting. Use the appropriate SharkBite® disconnect clip or tongs for removal or repositioning. Compatible with copper (Type K, L, M), CPVC CTS (SDR 11), PEX (ASTM F876), and PE-RT (ASTM F2769) tubing.
Applications
- Main or branch water shut-off points
- Water heater isolation
- Fixture or appliance control valves
